Why a complete paint line matters

In an automotive plant, paint is far more than decoration. The coating system is what protects a vehicle body, a motorcycle frame or a rickshaw chassis against rust, stone chips, fuel spills and years of hard weather. It is also the first thing a buyer sees: a dull, uneven or peeling finish tells the customer everything about the quality of the vehicle underneath it.

That is why experienced plant managers do not buy a paint shop one machine at a time. A paint line is a chain of connected processes: the part is cleaned and chemically prepared, coated in a controlled environment, dried and cured at a controlled temperature, and moved between every stage at a controlled pace. If any one stage is undersized, poorly ventilated or badly controlled, the defect appears at the end of the line — as weak adhesion, dust nibs or early corrosion. Setting up a paint shop for an automotive plant in Pakistan therefore means engineering the whole line as one system, sized for your vehicle mix and your target output.

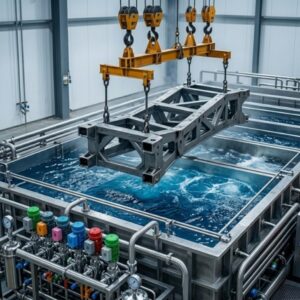

1. Phosphate pre-treatment tank: where paint adhesion is won or lost

Every durable coating starts before a single drop of paint is sprayed. Bare steel carries oil, dust, mill scale and light rust from fabrication, and paint applied over that contamination will blister and peel no matter how good the paint itself is. The phosphate pretreatment tank solves this at the start of the line. Parts pass through a sequence of cleaning, rinsing and phosphating stages, where a zinc, manganese or iron phosphate conversion coating is formed on the steel surface. That microscopic crystalline layer does two jobs at once: it gives the paint a surface it can grip, and it slows corrosion creeping underneath the film if the coating is ever chipped.

A well-built phosphate pretreatment tank is more than a steel box of chemicals. The solution must be held at a precise working temperature, which is why AIT's Phosphate Coating Tanks use an integrated heating manifold, and the bath must stay clean to coat evenly, which is why an advanced filtration loop continuously removes sludge and contaminants. The tank itself has to be fabricated from chemical-resistant material that can live with acidic phosphating solutions, mounted on a reinforced structural frame with proper drainage valves for maintenance. When you evaluate pre-treatment, ask how temperature is controlled, how sludge is handled, and how easily the bath can be drained and cleaned — because inconsistent pre-treatment quietly becomes inconsistent paint adhesion across every shift.

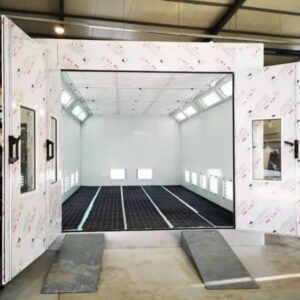

2. Paint spray booth: a clean room for coating

With the surface prepared, the part enters the spray booth — the stage most people picture when they think of a paint shop. When buyers compare a paint spray booth Pakistan suppliers can fabricate, install and support locally, the real question is not the size of the box but the quality of the air inside it. Dust is the enemy of a glossy finish, so a professional booth creates a clean, controlled environment: filtered air enters, overspray is drawn away, and the operator works under lighting bright enough to see the wet film clearly.

An automotive paint booth Pakistan plants can rely on for daily production combines several details that cheaper enclosures skip. Insulated sandwich panels keep the enclosure stable and cleanable. A heavy-duty grilled floor with downdraft exhaust pulls overspray down and away from the freshly coated surface instead of letting it settle back onto the vehicle. High-intensity LED lighting gives maximum visibility, so defects are caught while the paint is still wet and correctable. And a proper extraction system removes hazardous fumes, protecting both the painter and the finish. AIT's Paint Spray Booth is built on exactly these principles, with a wide-access double-door entry and viewing windows. Size the booth for your largest vehicle or component, with working room around it — a booth that is too tight produces rushed work and damaged edges.

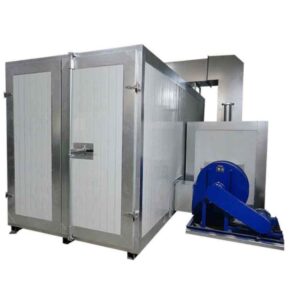

3. Drying and curing oven: turning wet paint into a hard finish

Fresh paint is fragile. It leaves the booth wet, and it only becomes the hard, glossy, chemical-resistant finish the customer expects after controlled heating. Drying removes the solvents and water from the film; curing goes further, completing the chemical cross-linking that gives the coating its final hardness and durability. An oven that heats unevenly — hot at the top, cool at the corners, drifting through the shift — produces soft paint in one area, over-baked and discoloured paint in another, and warranty problems months later.

This is why choosing an industrial drying oven Pakistan factories can run shift after shift comes down to temperature control and build quality. Precise temperature management through PLC-based controls holds the set profile across the whole chamber, and a heavy-duty structural steel build with proper insulation keeps that heat where it belongs. When you work with an industrial curing oven manufacturer Pakistan based — one that fabricates the oven, wires its controls and commissions it on your floor — the oven can be matched to your paint system, your part sizes and your line speed instead of forcing your process to fit a standard import. AIT's Industrial Drying & Baking Oven is custom-engineered for paint curing and component drying, and it is designed to serve both brand-new paint shops and upgrades to existing production lines.

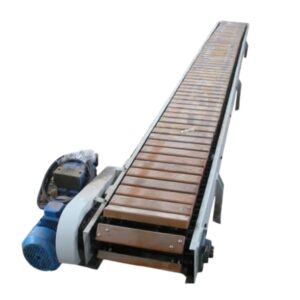

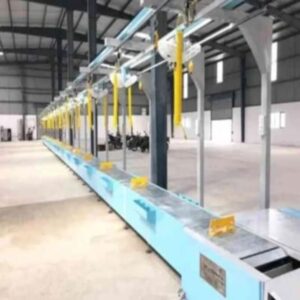

4. Conveyors: moving the line at one steady pace

Between the tank, the booth and the oven, something has to carry the work — and how it carries it decides whether the line flows or stumbles. Conveyors are the backbone of the paint shop: they present each part to every process for exactly the right amount of time. The conveyor's pace is, in effect, the line's clock.

Depending on the product mix, a paint line may use overhead conveyors that carry bodies and frames through each stage, floor or chain systems for heavier assemblies, or a combination matched to the plant layout. What matters is synchronisation: PLC controls, motion sensors and a properly engineered drive keep movement smooth and repeatable, with no jerks that swing hanging parts into each other and no stoppages that leave parts sitting in a hot oven. AIT designs and fabricates conveyor systems as part of complete assembly and paint lines, so the handling is planned with the process — not bolted on afterwards as an afterthought.

5. What to check before buying a paint line

A paint line is a long-term production asset, and the cheapest quotation is rarely the cheapest line to own. Before you sign, work through the points that decide how the line performs in year five, not just on installation day:

  • Capacity and vehicle mix. Define your daily output and the largest and smallest parts the line must handle — 2-wheelers, 3-wheelers, 4-wheelers or components — so every stage is sized with headroom.
  • Layout and utilities. Confirm the floor space, ceiling height, gas or electric heating supply, compressed air, water and drainage the line needs, and that your building can provide them.
  • Ventilation and safety. Spray areas and ovens handle fumes and heat. Check the extraction design, filtration and fume handling before anything is fabricated.

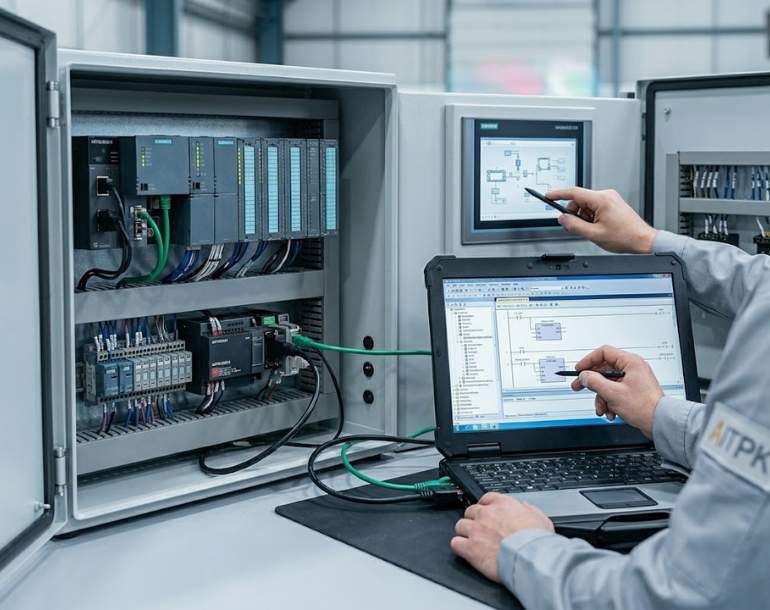

  • Controls and automation. PLC control of oven temperature, conveyor speed and booth systems turns operator guesswork into repeatable settings. This is where our Industrial Automation service connects the paint shop to the rest of your plant's controls.
  • Fabrication quality. Chemical-resistant tank construction, insulated booth panels and heavy-duty oven steel decide how the line ages. Inspect the build standard, not just the brochure.
  • Installation, commissioning and training. Agree who installs the line, who tests it under production conditions, and who trains your operators and maintenance team before handover.
  • Support after handover. A locally built line with a reachable engineering team is worth more than an imported line waiting weeks for a spare part or a technician.

If a supplier cannot answer these points clearly — in writing, against your layout and your output target — the line is not yet properly specified, whatever the price says.

Conclusion: build the line as one system

A good paint finish is never an accident, and it is never the achievement of a single machine. It is the result of a pre-treatment tank that prepares the steel honestly, a spray booth that keeps the coating clean, an oven that cures it evenly, and conveyors that move every part through those stages at one steady pace — all specified together, for your vehicles and your output. Whether you are setting up a new automotive paint shop in Pakistan or upgrading an existing line stage by stage, start with the complete system in view.

Planning a paint shop, or replacing one weak stage that is holding your finish quality back? Talk to an engineer at AIT. Our Lahore team designs, fabricates and commissions complete paint lines — pre-treatment, booths, ovens and conveyors under one roof — and we will scope yours around your plant, your vehicles and your target output.
